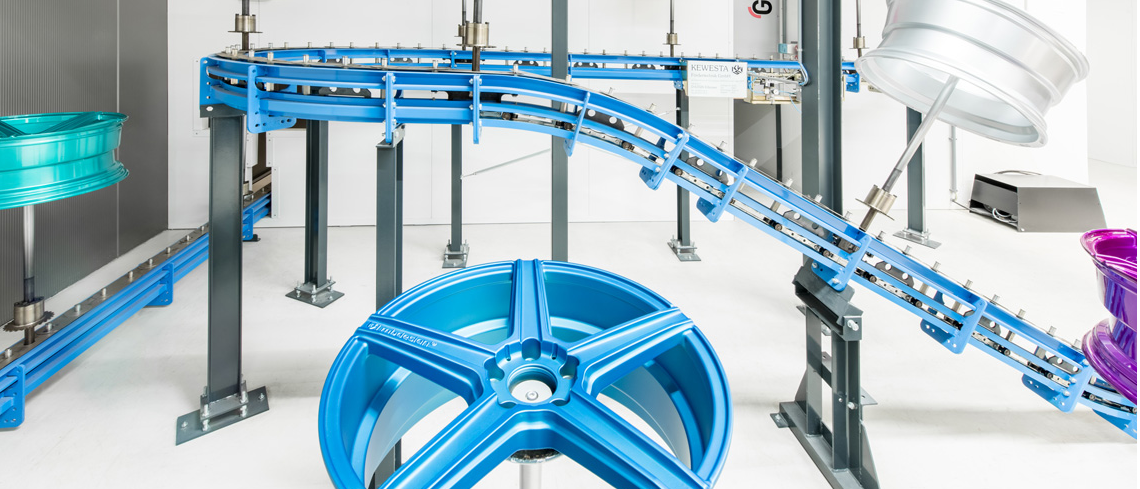

    Circular conveyor - 90 Nni Inverted

    ... we offer:

    • hanger bars with fancy designs, easy and quick installation through a second rail
    • caterpillar chain drive also available in maintenance free
    • special colours available on request
    • all spares and expansion parts immediately available from stock
    • delivery as from 4 weeks
    • German production quality

    Technical data

    Chain pitch: 200 mm
    max. unit load (approx.): 40 kg
    allowable chain pull (approx.): 7.000 N
    max. total hanger load (approx.): 8.000 kg
    max. operating temperature: 250°C
    min. horizontal bend radius: 600 mm
    min. vertical bend radius: 600 mm
    standard bend radius: 800 mm

    Standard installation lengths

    Threading-in joint: 800 mm
    Expansion joint: 350 mm
    Tension unit: 400 mm
    Lubrication unit: 700 mm
    Caterpillar chain drive: 1.200 mm
    Control unit: 500 mm
